elfvis - binary size treemap viewer

where have all the kibibytes have gone

tl;dr: i built a webpage that shows you where all the flash space in your firmware project has gone.

Elfvis has entered the building:

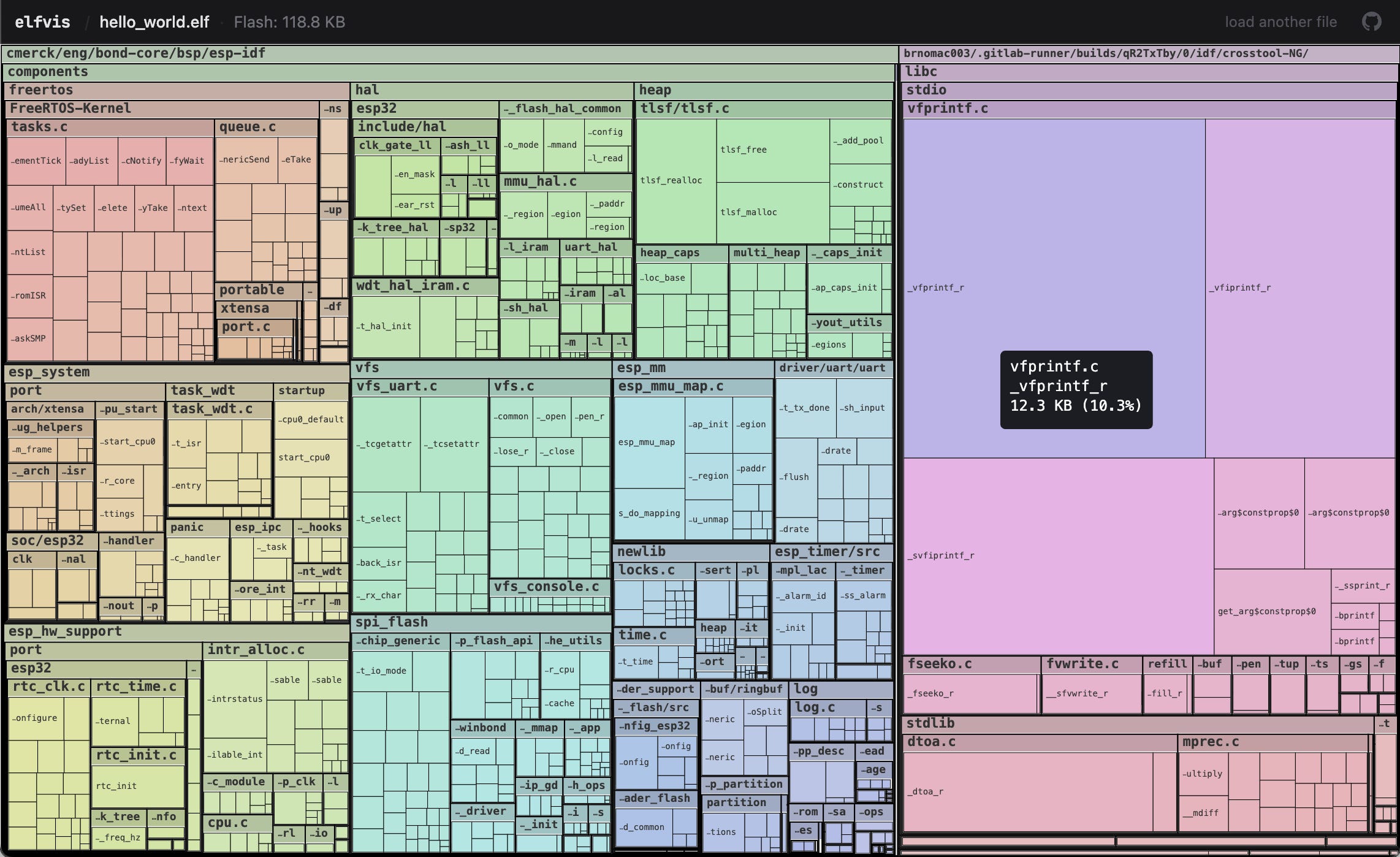

visualization of where all the flash space goes in the ESP32 hello world example

Let’s say you’ve run out of flash on your embedded project. Whoops. Now every time you want to add a feature, you need to squeeze out some KiB from somewhere else. The trouble is, running nm is such a bore and Bloaty is still tricky to see the whole project at once.

So, inspired by Simon Willison’s recent remark about the Go ecosystem having a Go binary visualizer, I went and built a little binary size visualizer of my own, that you can run right from your browser.

Usage

1. build your firmware

2. find the .elf file¹

3. go to https://bondhome.github.io/elfvis/

4. drag and drop the elf

5. the elf does not leave your machine

So far I’ve only tested this on STM32 and ESP32 binaries. Does not (yet) work for macOS binaries.

Learnings

Made in one morning with Claude Code / Opus 4.6, Jesse Vincent’s superpowers, and copious amounts of Stumptown.

The key steering I did was to build entirely in Rust/WASM, even the file upload. The frontend is just Rust writing directly to HTML5 Canvas. This is very performant and Keeps It Simple Siegfried. I’ve never been much for frameworks, having always just preferred to go straight to Canvas, and now Rust can do it. 🤯

The coloring works by starting out with the full hue interval from 0°–360°. Then, each time we branch off down the file tree, we apportion the hue interval of the parent relative to the area of the subtrees. This way all the colors of the color wheel are distributed evenly across the screen.

When testing on some binaries from work, I got lots of memory in the .rodata section, many of which did not even have any symbols attached. To solve this, elfvis peeks into the code² and tries to trace out which files reference that memory and attributes the data under that file.

It’s hard to fit all the symbol and file names, so if space runs out I try to show the end of the name, because the prefixes are often already clear from the tree context. Mouse over to get details.

If you find this useful, lmk in the comments!

1. be sure to build with debug symbols (-g)

2. Actually it uses something called DWARF Debug Information Entries.
